Reflektor +5.0V for WaveIO ― 2013年04月12日 22時17分26秒

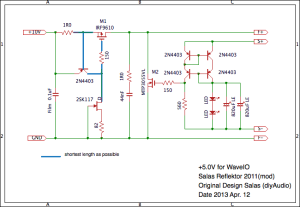

The schematic of Reflektor +5.0V is updated.
I highly recommend to use teflon or mica capacitor for Zobel because of sound quality. If you use something else, you will be in trouble.
I highly recommend to use teflon or mica capacitor for Zobel because of sound quality. If you use something else, you will be in trouble.
Reflektor +1.3V for ES9018S ― 2013年04月12日 22時36分30秒

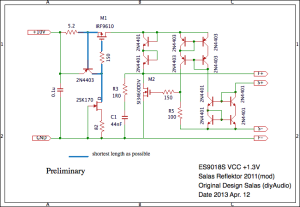

The schematic of Reflektor +1.3V for ES9018S is updated.
Please attention to output voltage, not 1.2V but 1.3V. Try on your risk. If you need +1.2V, you should change R5 from 100 to 500.
I have some plan to do. I guess that Si3460DDV is not best. So I am going to search for better one.
Please attention to output voltage, not 1.2V but 1.3V. Try on your risk. If you need +1.2V, you should change R5 from 100 to 500.
I have some plan to do. I guess that Si3460DDV is not best. So I am going to search for better one.
